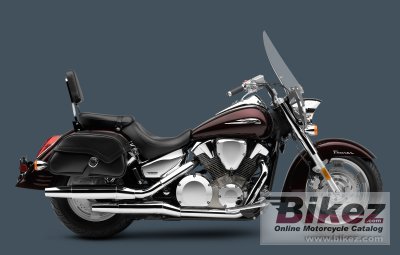

Honda VTX1300T 20122012 Honda VTX1300T specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| It´s the ultimate combination of performance cruising and retro styling, boasting a huge touring windscreen, cozy passenger backrest, roomy leather saddlebags, and, of course, that powerful 1312cc liquid-cooled V-twin to get you wherever it is you want to go. |
| General information | |
|---|---|
| Model name | Honda VTX1300T |
| Model year | 2012 |
| Category | Custom / cruiser |
| Price as new | US$ 10499. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1312.0 ccm (80.06 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | 52 degree V-twin |
| Compression | 9.2:1 |
| Bore x stroke | 89.5 x 104.3 mm (3.5 x 4.1 inches) |
| Valves per cylinder | 3 |
| Fuel system | Carburettor. Single 38mm constant-velocity carburetor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Emission details | Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 32.0° |
| Trail | 144 mm (5.7 inches) |
| Front suspension | 41mm fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Rear: Dual shocks with five-position spring-preload adjustability |
| Rear wheel travel | 94 mm (3.7 inches) |
| Front tire | 140/80-17 |
| Rear tire | 170/80-15 |
| Front brakes | Double disc. Twin-piston caliper |
| Diameter | 336 mm (13.2 inches) |
| Rear brakes | Single disc. Twin-piston caliper |
| Diameter | 296 mm (11.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 339.3 kg (748.0 pounds) |
| Seat height | 696 mm (27.4 inches) If adjustable, lowest setting. |
| Wheelbase | 1669 mm (65.7 inches) |
| Fuel capacity | 18.17 litres (4.80 US gallons) |
| Other specifications | |
| Color options | Black, Titanium, Dark Red |
| Starter | Electric |
| Factory warranty | One Year. Unlimited-mileage limited warranty extended coverage available with a Honda Protection Plan. |
| Comments | Windscreen. Full Touring Features. Model ID: VTX1300T. |
