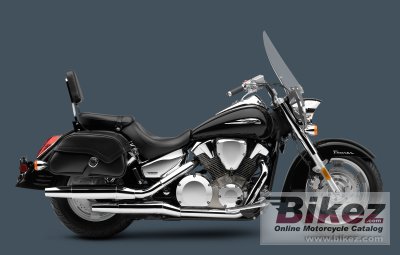

Honda VTX1300T 20092009 Honda VTX1300T specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| While every member of the VTX1300 family boasts the sort of comfort that makes riding a breeze, the VTX1300T is the ultimate combination of performance cruising and retro styling - boasting a touring windscreen, cozy passenger backrest, leather saddlebags, and that powerful 1312cc liquid-cooled V-twin to get you where you want to go. |
| General information | |
|---|---|
| Model | Honda VTX1300T |
| Year | 2009 |
| Category | Touring |
| Price as new | US$ 11299. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.5 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 1312.0 ccm (80.06 cubic inches) |
| Engine type | V2, four-stroke |
| Compression | 9.2:1 |
| Bore x stroke | 89.5 x 104.3 mm (3.5 x 4.1 inches) |
| Valves per cylinder | 3 |
| Fuel system | Carburettor. Single 38mm constant-velocity carburetor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 32.0° |
| Trail | 144 mm (5.7 inches) |
| Front suspension | 41mm fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Dual shocks with five-position spring-preload adjustability |
| Rear wheel travel | 94 mm (3.7 inches) |
| Front tire | 140/80-17 |
| Rear tire | 170/80-15 |
| Front brakes | Single disc |
| Diameter | 336 mm (13.2 inches) |
| Rear brakes | Single disc |
| Diameter | 296 mm (11.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 339.3 kg (748.0 pounds) |
| Seat height | 695 mm (27.4 inches) If adjustable, lowest setting. |
| Wheelbase | 1669 mm (65.7 inches) |
| Fuel capacity | 18.16 litres (4.80 US gallons) |
| Other specifications | |
| Color options | Black, Titanium, Dark Red Metallic |
| Starter | Electric |
| Comments | Model ID: VTX1300T. Also called VTX1300 Touring. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Honda VTX1300T discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Honda. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2009 Honda VTX1300T for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Honda bike | |
Touring capabilities for the 2009 Honda VTX1300T:  (68.6 out of 100)Click here for complete rating. |
|
