General information |
|
Motorcycle name
|

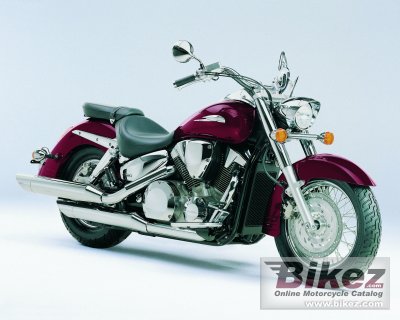

Honda VTX1300S |
|
Model year
|
2007 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1312.0 ccm (80.06 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
74.0 HP (54.0 kW)) @ 5000 RPM |
|
Torque
|
123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 3000 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
89.5 x 104.3 mm (3.5 x 4.1 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital transistorised with electronic advance; two spark plugs per cylinder |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Front 41mm telescopic fork, 130mm axle travel |
|
Rear suspension
|
Rear Dual conventional dampers with 5-step adjustable spring preload, 94mm axle travel |
|
Front brakes
|
Single disc |
|
Diameter
|
336 mm (13.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
296 mm (11.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
300.0 kg (661.4 pounds) |
|
Power/weight ratio
|
0.2467 HP/kg |
|
Seat height
|
686 mm (27.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2575 mm (101.4 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1669 mm (65.7 inches) |
|
Fuel capacity
|
18.00 litres (4.76 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
