General information |
|
Motorcycle name
|

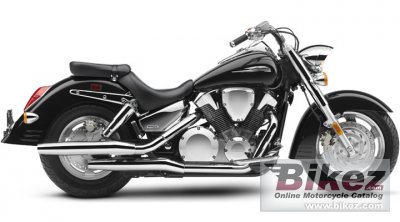

Honda VTX1300R Retro |
|
Year
|
2008 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 9599. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1312.0 ccm (80.06 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
89.5 x 104.3 mm (3.5 x 4.1 inches) |
|
Valves per cylinder
|
3 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital with three-dimensional mapping, two spark plugs per cylinder |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
144 mm (5.7 inches) |
|
Front suspension
|
41mm fork |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Rear: Dual shocks with five-position spring preload adjustability |
|
Rear wheel travel
|
94 mm (3.7 inches) |
|
Front tire
|
140/80-17 |
|
Rear tire
|
170/80-15 |
|
Front brakes
|
Single disc |
|
Diameter
|
336 mm (13.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
296 mm (11.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
322.1 kg (710.0 pounds) |
|
Seat height
|
695 mm (27.4 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1669 mm (65.7 inches) |
|
Fuel capacity
|
18.16 litres (4.80 US gallons) |
|
Other specifications |
|
Color options
|
Black, Pearl White, Dark Blue Metallic |
|
Starter
|
Electric |
|
Comments
|
Model ID: VTX1300R |
