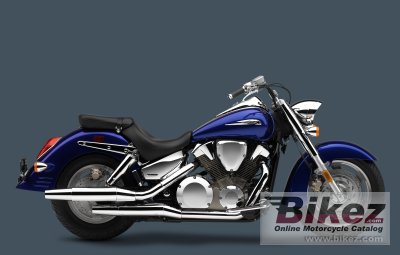

Honda VTX1300R 20122012 Honda VTX1300R specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| It´s not easy categorizing a motorcycle as classically cool and feature-packed as the VTX1300R, so we like to go with performance-retro. Take a closer look and we think you´ll agree. Check out the burly 1312cc V-twin engine and staggered dual exhaust complete with mandatory throaty growl. |
| General information | |
|---|---|
| Model | Honda VTX1300R |
| Year of manufacture | 2012 |
| Type | Custom / cruiser |
| Price as new | US$ 10299. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1312.0 ccm (80.06 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | 52 degree V-twin |
| Compression | 9.2:1 |
| Bore x stroke | 89.5 x 104.3 mm (3.5 x 4.1 inches) |
| Valves per cylinder | 3 |
| Fuel system | Carburettor. Single 38mm constant-velocity carburetor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Emission details | Meets current EPA emissions standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 32.0° |
| Trail | 144 mm (5.7 inches) |
| Front suspension | 41mm fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Rear: Dual shocks with five-position spring-preload adjustability |
| Rear wheel travel | 94 mm (3.7 inches) |
| Front tire | 140/80-17 |
| Rear tire | 170/80-15 |
| Front brakes | Double disc. Twin-piston caliper |
| Diameter | 336 mm (13.2 inches) |
| Rear brakes | Single disc. Twin-piston caliper |
| Diameter | 296 mm (11.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 322.1 kg (710.0 pounds) |
| Seat height | 696 mm (27.4 inches) If adjustable, lowest setting. |
| Wheelbase | 1669 mm (65.7 inches) |
| Fuel capacity | 18.17 litres (4.80 US gallons) |
| Other specifications | |
| Color options | Metallic Silver, Metallic Black and Bright Blue Metallic |
| Factory warranty | One year. |
| Comments | Model ID: VTX1300R |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Honda VTX1300R discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Free motorcycle classifieds
Click here to sell a used 2012 Honda VTX1300R or advertise any other MC for sale. You can list all available Honda VTX1300R bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world. You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc.| Rating sample for this Honda bike | |
Engine performance for the 2012 Honda VTX1300R:  (83.8 out of 100)Click here for complete rating. |
|
