Honda VTX1300R 20092009 Honda VTX1300R specifications, pictures, reviews and rating |

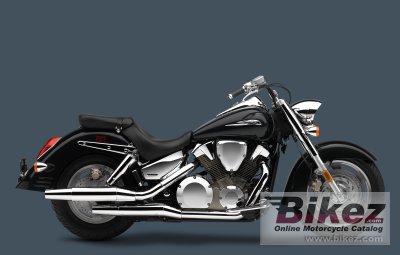

2009 Honda VTX1300R. Image credits - Honda.
| Honda's profilation of this bike |
| It´s not easy categorizing a motorcycle as classically cool and feature-packed as the VTX1300R, so we like to go with “performance-retro”. |
| General information | |
|---|---|
| Motorcycle name | Honda VTX1300R |
| Year model | 2009 |
| Type | Custom / cruiser |
| Price as new | US$ 9899. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1312.0 ccm (80.06 cubic inches) |
| Type of engine | V2, four-stroke |
| Compression | 9.2:1 |
| Bore x stroke | 89.5 x 104.3 mm (3.5 x 4.1 inches) |
| Valves per cylinder | 3 |
| Fuel system | Carburettor. Single 38mm constant-velocity carburetor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 32.0° |
| Trail | 144 mm (5.7 inches) |
| Front suspension | 41mm fork |
| Rear suspension | Dual shocks with five-position spring-preload adjustability |
| Front tire | 140/80-17 |
| Rear tire | 170/80-15 |
| Front brakes | Double disc |
| Diameter | 336 mm (13.2 inches) |
| Rear brakes | Single disc |
| Diameter | 296 mm (11.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 322.1 kg (710.0 pounds) |
| Seat height | 695 mm (27.4 inches) If adjustable, lowest setting. |
| Wheelbase | 1669 mm (65.7 inches) |
| Fuel capacity | 18.16 litres (4.80 US gallons) |
| Other specifications | |
| Color options | Silver Metallic, Metallic Black and Bright Blue Metallic |
| Comments | Model ID: VTX1300R. Also called VTX1300 Retro. |
