General information |
|
Model name
|

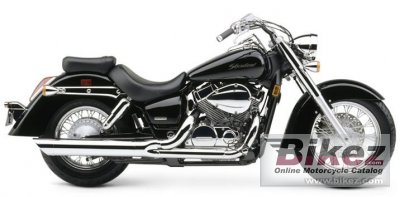

Honda VT 750 Shadow Aero |
|
Model year
|
2004 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 6199. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
745.0 ccm (45.46 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
79.0 x 76.0 mm (3.1 x 3.0 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.6° |
|
Trail
|
161 mm (6.3 inches) |
|
Front suspension
|
41.0mm fork |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Dual shocks with five-position spring preload adjustability |
|
Rear wheel travel
|
89 mm (3.5 inches) |
|
Front tire
|
120/90-17 |
|
Rear tire
|
160/80-15 |
|
Front brakes
|
Single disc |
|
Diameter
|
296 mm (11.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
180 mm (7.1 inches) |
|
Physical measures and capacities |
|
Seat height
|
658 mm (25.9 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1638 mm (64.5 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Reserve fuel capacity
|
3.40 litres (0.90 US gallons) |
|
Other specifications |
|
Color options
|
Black, Candy Dark Red, Black/Candy Dark Red, Black/Metallic Silver, Black/Pearl Blue |
