General information |
|
Model
|

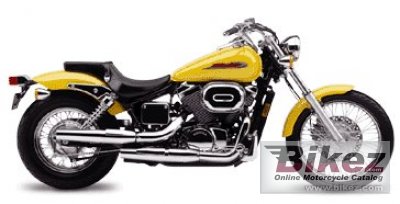

Honda VT 750 DC Shadow Spirit |
|
Year of manufacture
|
2002 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
745.0 ccm (45.46 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
43.0 HP (31.4 kW)) @ 5500 RPM |
|
Torque
|
60.5 Nm (6.2 kgf-m or 44.6 ft.lbs) @ 3500 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
79.0 x 76.0 mm (3.1 x 3.0 inches) |
|
Valves per cylinder
|
3 |
|
Fuel system
|
Carburettor. Two 36mm diaphragm-type CV |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Solid-state with electronic advance, two spark plugs per cylinder |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
O-ring-sealed drive chain |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
41mm Telescopic fork. |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Dual shocks 5-way spring-preload adjustability |
|
Rear wheel travel
|
81 mm (3.2 inches) |
|
Front tire
|
110/80-19 |
|
Rear tire
|
160/80-15 |
|
Front brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
296 mm (11.7 inches) |
|
Rear brakes
|
Expanding brake |
|
Diameter
|
180 mm (7.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
225.0 kg (496.0 pounds) |
|
Weight incl. oil, gas, etc
|
248.0 kg (546.7 pounds) |
|
Power/weight ratio
|
0.1911 HP/kg |
|
Seat height
|
676 mm (26.6 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1646 mm (64.8 inches) |
|
Fuel capacity
|
16.40 litres (4.33 US gallons) |
|
Oil capacity
|
2.70 litres (2.85 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-40 |
|
Oil filter
|
ProFilter PF-303B |
|
Brake fluid
|
DOT 4 |
|
Coolant
|
2.00 litres (0.53 US gallons) |
|
Battery
|
YTZ14S |
|
Spark plugs
|
NGK DPR7EA-9, NGK DPR7EIX-9 |
|
Idle speed
|
1200 +/- 100 RPM |
|
Chain size
|
525 |
|
Chain links
|
122 |
|
Sprockets
|
17/42 (front/rear) |
|
Tire pressure front
|
29 PSI (2 Bar or 200 kPa) |
|
Tire pressure rear
|
29 PSI (2 Bar or 200 kPa) |
|
Fork tube size
|
41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
