Honda VT 750 DC Black Widow 20022002 Honda VT 750 DC Black Widow specifications, pictures, reviews and rating |

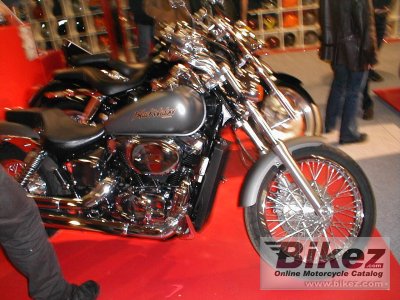

 2002 Honda VT 750 DC Black Widow. Picture credits - Harald Holm. Submit more pictures.
|
| General information | |
|---|---|
| Model name | Honda VT 750 DC Black Widow |
| Model year | 2002 |
| Category | Custom / cruiser |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 745.0 ccm (45.46 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 45.2 HP (33.0 kW)) @ 5500 RPM |
| Torque | 63.0 Nm (6.4 kgf-m or 46.5 ft.lbs) @ 3000 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 79.0 x 76.0 mm (3.1 x 3.0 inches) |
| Valves per cylinder | 3 |
| Fuel system | Carburettor |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front wheel travel | 108 mm (4.3 inches) |
| Rear wheel travel | 80 mm (3.1 inches) |
| Front tire | 110/80-19 59S |
| Rear tire | 160/80-15M/C 74S |
| Front brakes | Single disc |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Expanding brake |
| Diameter | 180 mm (7.1 inches) |
| Physical measures and capacities | |
| Dry weight | 221.0 kg (487.2 pounds) |
| Power/weight ratio | 0.2045 HP/kg |
| Seat height | 645 mm (25.4 inches) If adjustable, lowest setting. |
| Overall height | 1070 mm (42.1 inches) |
| Overall length | 2310 mm (90.9 inches) |
| Overall width | 800 mm (31.5 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1640 mm (64.6 inches) |
| Fuel capacity | 13.40 litres (3.54 US gallons) |
| Reserve fuel capacity | 4.80 litres (1.27 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Honda VT 750 DC Black Widow discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2002 Honda VT 750 DC Black Widow discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Honda bike | |
Offroad capabilities for the 2002 Honda VT 750 DC Black Widow:  (43.0 out of 100)Click here for complete rating. You can also compare bikes. |
|
