Honda VT 750 CD Shadow A.C.E. Deluxe 20022002 Honda VT 750 CD Shadow A.C.E. Deluxe specifications, pictures, reviews and rating |

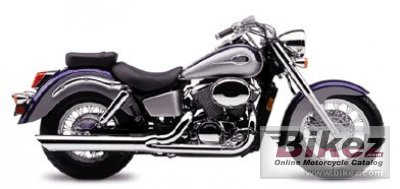

2002 Honda VT 750 CD Shadow A.C.E. Deluxe. Picture by Honda. Published with permission.. Submit more pictures.
| General information | |
|---|---|
| Model name | Honda VT 750 CD Shadow A.C.E. Deluxe |
| Model year | 2002 |
| Category | Custom / cruiser |
| Rating | 3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 745.0 ccm (45.46 cubic inches) |
| Engine type | V2, four-stroke |
| Compression | 9.0:1 |
| Bore x stroke | 79.0 x 76.0 mm (3.1 x 3.0 inches) |
| Valves per cylinder | 3 |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear wheel travel | 89 mm (3.5 inches) |
| Front tire | 120/90-17 |
| Rear tire | 170/80-15 |
| Front brakes | Single disc |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Expanding brake |
| Physical measures and capacities | |
| Dry weight | 229.0 kg (504.9 pounds) |
| Seat height | 701 mm (27.6 inches) If adjustable, lowest setting. |
| Wheelbase | 1615 mm (63.6 inches) |
| Fuel capacity | 16.80 litres (4.44 US gallons) |
| Reserve fuel capacity | 4.10 litres (1.08 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Honda VT 750 CD Shadow A.C.E. Deluxe discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2002 Honda VT 750 CD Shadow A.C.E. Deluxe discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Honda bike | |
Touring capabilities for the 2002 Honda VT 750 CD Shadow A.C.E. Deluxe:  (75.3 out of 100)Click here for complete rating. |
|
