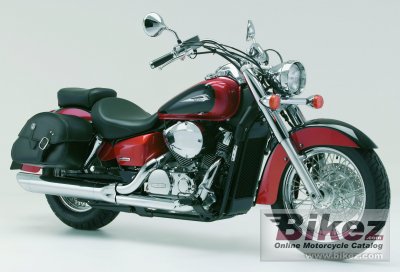

Honda VT 750 C4 Shadow 20062006 Honda VT 750 C4 Shadow specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Honda VT 750 C4 Shadow |
| Year | 2006 |
| Category | Custom / cruiser |
| Rating | 3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 745.0 ccm (45.46 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 43.0 HP (31.4 kW)) @ 5500 RPM |
| Torque | 60.5 Nm (6.2 kgf-m or 44.6 ft.lbs) @ 3000 RPM |
| Compression | 9.6:1 |
| Bore x stroke | 79.0 x 76.0 mm (3.1 x 3.0 inches) |
| Valves per cylinder | 3 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet, multiplate with coil springs |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork, 41 mm |
| Front wheel travel | 127 mm (5.0 inches) |
| Rear suspension | Dual shocks |
| Rear wheel travel | 89 mm (3.5 inches) |
| Front tire | 120/90-17 |
| Rear tire | 160/80-15 |
| Front brakes | Single disc. 2-piston calipers |
| Diameter | 296 mm (11.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 180 mm (7.1 inches) |
| Physical measures and capacities | |
| Dry weight | 239.0 kg (526.9 pounds) |
| Power/weight ratio | 0.1799 HP/kg |
| Seat height | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall length | 2510 mm (98.8 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1615 mm (63.6 inches) |
| Fuel capacity | 11.40 litres (3.01 US gallons) |
| Reserve fuel capacity | 3.60 litres (0.95 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
