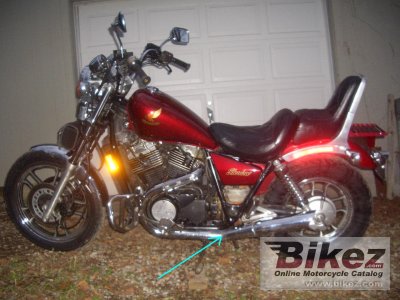

Honda VT 700 C 19841984 Honda VT 700 C specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Honda VT 700 C |
| Year of manufacture | 1984 |
| Type | Custom / cruiser |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 694.5 ccm (42.38 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 62.0 HP (45.3 kW)) @ 7500 RPM |
| Torque | 62.1 Nm (6.3 kgf-m or 45.8 ft.lbs) @ 6000 RPM |
| Compression | 9.6:1 |
| Bore x stroke | 76.5 x 75.5 mm (3.0 x 3.0 inches) |
| Valves per cylinder | 3 |
| Fuel system | Carburettor. 36mm (1.42in) Vertical |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Full transistor ignition |
| Lubrication system | Forced pressure and wet sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet, multi plate |
| Exhaust system | Parallel stainless steel pipes |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double cradle |
| Rake (fork angle) | 32.0° |
| Trail | 139 mm (5.5 inches) |
| Front suspension | Telescopic Fork |
| Front wheel travel | 145 mm (5.7 inches) |
| Rear suspension | Swingarm / shock absorber |
| Rear wheel travel | 103 mm (4.1 inches) |
| Front tire | 110/90-19 62H |
| Rear tire | 140/90-15 70H |
| Front brakes | Double disc. 2-piston calipers |
| Diameter | 218 mm (8.6 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 201 mm (7.9 inches) |
| Physical measures and capacities | |
| Dry weight | 211.0 kg (465.2 pounds) |
| Weight incl. oil, gas, etc | 225.0 kg (496.0 pounds) |
| Power/weight ratio | 0.2938 HP/kg |
| Seat height | 760 mm (29.9 inches) If adjustable, lowest setting. |
| Overall height | 1200 mm (47.2 inches) |
| Overall length | 2190 mm (86.2 inches) |
| Overall width | 860 mm (33.9 inches) |
| Ground clearance | 150 mm (5.9 inches) |
| Wheelbase | 1525 mm (60.0 inches) |
| Fuel capacity | 12.50 litres (3.30 US gallons) |
| Reserve fuel capacity | 2.00 litres (0.53 US gallons) |
| Oil capacity | 3.00 litres (3.17 US quarts) |
| Other specifications | |
| Color options | Red, Black |
| Starter | Electric |
| Comments | 90% of This is taken directly from the service manual. The number of valves per cylinder is hinted at 2 per cylinder but never stated. 2-piston caliper front brakes wasn´t stated but I checked the bike itself. |
