General information |
|
Model
|

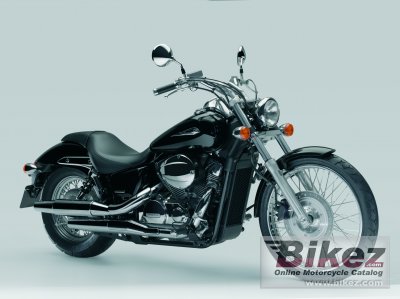

Honda VT750DC Shadow Spirit |
|
Year model
|
2009 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.2 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
745.0 ccm (45.46 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
44.9 HP (32.8 kW)) @ 5500 RPM |
|
Torque
|
65.1 Nm (6.6 kgf-m or 48.0 ft.lbs) @ 3500 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
79.0 x 76.0 mm (3.1 x 3.0 inches) |
|
Fuel system
|
Injection. PGM-FI electronic fuel injection with automatic choke |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Fully transistorised electronic |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
41mm telescopic fork, 115mm axle travel |
|
Rear suspension
|
Dual conventional dampers with 5-step adjustable spring preload, 90mm axle travel |
|
Front tire
|
90/90-M21 |
|
Rear tire
|
160/80-M15 |
|
Front brakes
|
Single disc |
|
Diameter
|
296 mm (11.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
180 mm (7.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
230.5 kg (508.2 pounds) |
|
Power/weight ratio
|
0.1949 HP/kg |
|
Seat height
|
652 mm (25.7 inches) If adjustable, lowest setting. |
|
Overall length
|
2424 mm (95.4 inches) |
|
Ground clearance
|
132 mm (5.2 inches) |
|
Wheelbase
|
1653 mm (65.1 inches) |
|
Fuel capacity
|
14.60 litres (3.86 US gallons) |
|
Other specifications |
|
Color options
|
Black, dark red |
|
Starter
|
Electric |
