General information |
|
Motorcycle name
|

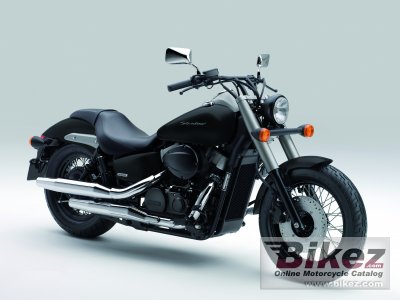

Honda VT750C2B Shadow Black Spirit |
|
Model year
|
2012 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
745.0 ccm (45.46 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
52° V-twin |
|
Power output
|
44.9 HP (32.8 kW)) @ 5500 RPM |
|
Torque
|
64.0 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 3500 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
79.0 x 76.0 mm (3.1 x 3.0 inches) |
|
Valves per cylinder
|
3 |
|
Fuel system
|
Injection. PGM-FI with automatic choke |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital with 3-D mapping, two spark plugs per cylinder |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
34.0° |
|
Trail
|
161 mm (6.3 inches) |
|
Front suspension
|
41mm telescopic fork |
|
Rear suspension
|
Dual shocks with five-position spring preload adjustability |
|
Front tire
|
120/90-17 |
|
Rear tire
|
160/80-15 |
|
Front brakes
|
Single disc. Dual-piston caliper and sintered metal pads |
|
Diameter
|
296 mm (11.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
180 mm (7.1 inches) |
|
Wheels
|
Black painted steel rim/wire spoke |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
251.0 kg (553.4 pounds) |
|
Seat height
|
673 mm (26.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2510 mm (98.8 inches) |
|
Overall width
|
835 mm (32.9 inches) |
|
Wheelbase
|
1640 mm (64.6 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Reserve fuel capacity
|
3.50 litres (0.92 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
