General information |
Motorcycle name
|

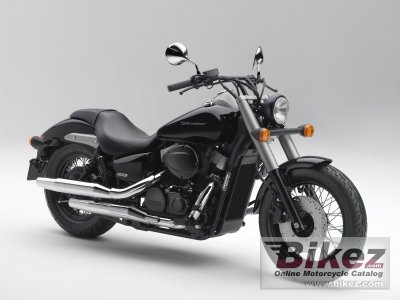

Honda VT750C2B |
Model year
|
2011 |
Category
|
Custom / cruiser |
Rating
|
3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
745.0 ccm (45.46 cubic inches) |
Engine type
|
V2, four-stroke |
Engine details
|
52° V-twin |
Power output
|
44.9 HP (32.8 kW)) @ 5500 RPM |
Torque
|
64.0 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 3500 RPM |
Compression
|
9.6:1 |
Bore x stroke
|
79.0 x 76.0 mm (3.1 x 3.0 inches) |
Valves per cylinder
|
3 |
Fuel system
|
Injection. PGM-FI with automatic enrichment circuit, 34 mm throttle body |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Digital transistorized with electronic advance |
Lubrication system
|
Wet sump |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Exhaust system
|
Dual exhaust |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
34.0° |
Trail
|
161 mm (6.3 inches) |
Front suspension
|
41mm telescopic fork |
Rear suspension
|
Dual shocks with five-position spring preload adjustability |
Front tire
|
120/90-17 |
Rear tire
|
160/80-15 |
Front brakes
|
Single disc |
Diameter
|
296 mm (11.7 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
180 mm (7.1 inches) |
Wheels
|
Black rims |
Physical measures and capacities |
Dry weight
|
249.0 kg (549.0 pounds) |
Power/weight ratio
|
0.1804 HP/kg |
Seat height
|
653 mm (25.7 inches) If adjustable, lowest setting. |
Overall length
|
1640 mm (64.6 inches) |
Fuel capacity
|
14.00 litres (3.70 US gallons) |
Other specifications |
Color options
|
Black |
Starter
|
Electric |
