General information |
|
Model name
|

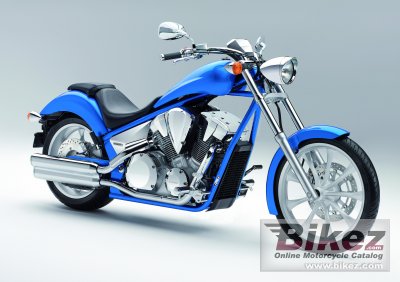

Honda VT1300CX |
|
Year
|
2011 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1312.0 ccm (80.06 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
57.0 HP (41.6 kW)) @ 4250 RPM |
|
Torque
|
107.0 Nm (10.9 kgf-m or 78.9 ft.lbs) @ 2250 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
89.5 x 104.3 mm (3.5 x 4.1 inches) |
|
Fuel system
|
Injection. PGM-FI with automatic enricher circuit |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital with 3-dimensional mapping, 2 sparks per cylinder |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
Shaft |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
45mm telescopic fork with 130mm stroke and 102.4mm axle travel |
|
Rear suspension
|
Monoshock with adjustable rebound damping and 35-position spring preload adjustability, 95mm axle travel |
|
Front tire
|
90/90-R21 |
|
Rear tire
|
200/50-R18 |
|
Front brakes
|
Double disc |
|
Diameter
|
336 mm (13.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
296 mm (11.7 inches) |
|
Wheels
|
cast aluminium |
|
Physical measures and capacities |
|
Dry weight
|
303.0 kg (668.0 pounds) |
|
Power/weight ratio
|
0.1881 HP/kg |
|
Seat height
|
678 mm (26.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1150 mm (45.3 inches) |
|
Overall length
|
2575 mm (101.4 inches) |
|
Overall width
|
900 mm (35.4 inches) |
|
Ground clearance
|
126 mm (5.0 inches) |
|
Wheelbase
|
1805 mm (71.1 inches) |
|
Fuel capacity
|
20.30 litres (5.36 US gallons) |
|
Other specifications |
|
Color options
|
Blue, black |
|
Starter
|
Electric |
