Honda VT1300CS ABS 20112011 Honda VT1300CS ABS specifications, pictures, reviews and rating |

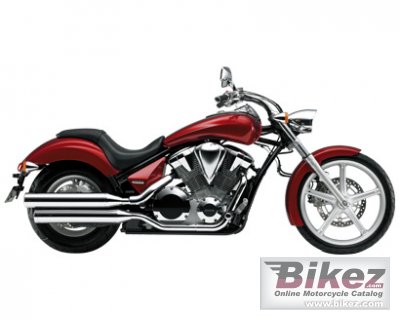

 2011 Honda VT1300CS ABS. Picture credits - Honda. Submit more pictures.
|
| General information | |
|---|---|
| Model | Honda VT1300CS ABS |
| Year model | 2011 |
| Type | Custom / cruiser |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1312.0 ccm (80.06 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | SC61E Engine |
| Torque | 103.0 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 2750 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 89.5 x 104.3 mm (3.5 x 4.1 inches) |
| Valves per cylinder | 3 |
| Fuel system | Injection |
| Fuel control | Overhead Cams (OHC) |
| Ignition | transistor type |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 33.0° |
| Trail | 115 mm (4.5 inches) |
| Front suspension | Telescopic fork |
| Rear suspension | Swing arm |
| Front tire | 90/90-21 |
| Rear tire | 170/80-15M |
| Front brakes | Single disc. Anti-lock braking (ABS) |
| Rear brakes | Single disc. Anti-lock braking (ABS) |
| Seat | 2 person seat |
| Physical measures and capacities | |
| Dry weight | 310.0 kg (683.4 pounds) |
| Seat height | 684 mm (26.9 inches) If adjustable, lowest setting. |
| Overall height | 1100 mm (43.3 inches) |
| Overall length | 2580 mm (101.6 inches) |
| Overall width | 820 mm (32.3 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1785 mm (70.3 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Other specifications | |
| Comments | Sold in Japan. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 11 Honda VT1300CS ABS discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this Honda. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2011 Honda VT1300CS ABS for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
| Rating sample for this Honda bike | |
Design and look for the 2011 Honda VT1300CS ABS:  (80.4 out of 100)Click here for complete rating. You can also compare bikes. |
|
