Honda VT1300CS 20112011 Honda VT1300CS specifications, pictures, reviews and rating |

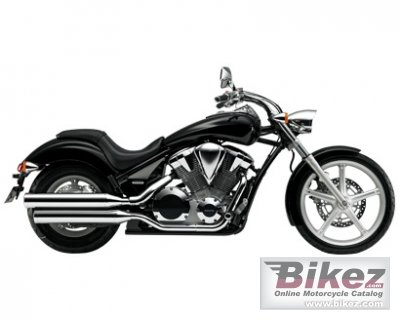

 2011 Honda VT1300CS. Picture credits - Honda. Submit more pictures.
|
|
| General information | |
|---|---|
| Motorcycle name | Honda VT1300CS |
| Model year | 2011 |
| Category | Custom / cruiser |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1312.0 ccm (80.06 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | SC61E Engine |
| Torque | 103.0 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 2750 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 89.5 x 104.3 mm (3.5 x 4.1 inches) |
| Valves per cylinder | 3 |
| Fuel system | Injection. PGM-FI |
| Fuel control | Overhead Cams (OHC) |
| Ignition | transistor type |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 33.0° |
| Trail | 115 mm (4.5 inches) |
| Front suspension | Telescopic fork |
| Rear suspension | Swing arm |
| Front tire | 90/90-21 |
| Rear tire | 170/80-15M |
| Front brakes | Single disc |
| Rear brakes | Single disc. Optional ABS |
| Seat | 2 person seat |
| Physical measures and capacities | |
| Dry weight | 304.0 kg (670.2 pounds) |
| Seat height | 684 mm (26.9 inches) If adjustable, lowest setting. |
| Overall height | 1100 mm (43.3 inches) |
| Overall length | 2580 mm (101.6 inches) |
| Overall width | 820 mm (32.3 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1785 mm (70.3 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Other specifications | |
| Color options | Black, dark red |
| Starter | Electric |
| Comments | Sold in Japan. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 11 Honda VT1300CS discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Sell or buy used bikes?Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2011 Honda VT1300CS or advertise any other MC for sale. You can list all 2011 Honda VT1300CS available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc. |
|
| Rating sample for this Honda bike | |
Offroad capabilities for the 2011 Honda VT1300CS:  (66.9 out of 100)Click here for complete rating. You can also compare bikes. |
|
