General information |
|
Model
|

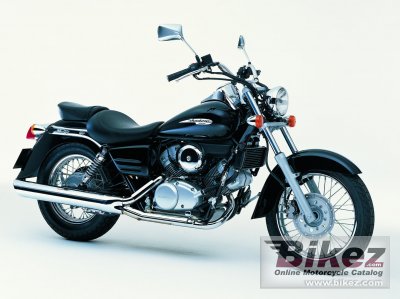

Honda VT125C Shadow |
|
Model year
|
2007 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.2 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
125.0 ccm (7.63 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
15.0 HP (10.9 kW)) @ 11000 RPM |
|
Torque
|
10.5 Nm (1.1 kgf-m or 7.7 ft.lbs) @ 9000 RPM |
|
Compression
|
11.8:1 |
|
Bore x stroke
|
42.0 x 45.0 mm (1.7 x 1.8 inches) |
|
Fuel system
|
Carburettor. 22mm VP-type x 2 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital transistorised with electronic advance |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
35mm telescopic fork, 110mm axle travel |
|
Rear suspension
|
Dual dampers with adjustable preload, 80mm axle travel |
|
Front brakes
|
Double disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
130 mm (5.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
145.0 kg (319.7 pounds) |
|
Power/weight ratio
|
0.1034 HP/kg |
|
Seat height
|
680 mm (26.8 inches) If adjustable, lowest setting. |
|
Overall length
|
2300 mm (90.6 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1530 mm (60.2 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
