Honda Vision 50 20122012 Honda Vision 50 specifications, pictures, reviews and rating |

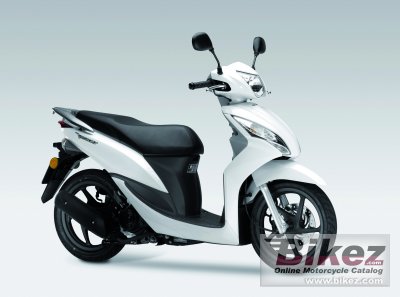

 2012 Honda Vision 50. Picture credits - Honda. Submit more pictures.
|
| Honda's profilation of this bike |
| The 2012 Vision 50 has been created to offer reliable, fun mobility at an attractively low price. As a machine intended for daily use by a huge range of customers, qualities such as durability, dependability, safety and ease of use were considered vitally important during development. With a reliable and efficient fuel-injected engine, a stable and easy to ride chassis, the advanced safety of Honda´s Combined Braking System (CBS) and extensive storage space, the Vision 50 represents a smart and reassuring option in the 50cc scooter market. |
| General moped information | |
|---|---|
| Model | Honda Vision 50 |
| Year model | 2012 |
| Type | Scooter |
| Rating | 3.0 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 49.0 ccm (2.99 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 3.4 HP (2.4 kW)) @ 7000 RPM |
| Torque | 3.5 Nm (0.4 kgf-m or 2.6 ft.lbs) @ 6750 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 37.8 x 37.8 mm (1.5 x 1.5 inches) |
| Fuel system | Injection |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Full-transistor battery ignition |
| Cooling system | Air |
| Transmission type | Belt (final drive) |
| Driveline | V-Belt |
| Chassis, suspension, brakes and wheels | |
| Frame type | Underbone; steel tube |
| Front suspension | Telescopic forks with hydraulic damping |
| Rear suspension | Unit swingarm |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 130 mm (5.1 inches) |
| Wheels | Cast aluminium MT1.85 |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 100.0 kg (220.5 pounds) |
| Overall height | 1117 mm (44.0 inches) |
| Overall length | 1702 mm (67.0 inches) |
| Wheelbase | 1284 mm (50.6 inches) |
| Fuel capacity | 5.50 litres (1.45 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Honda Vision 50 discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
