General information |
|
Model name
|

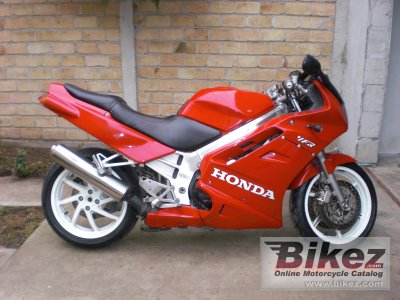

Honda VFR 750 F |
|
Year of manufacture
|
1992 |
|
Type
|
Sport touring |
|
Rating
|
3.8 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
748.0 ccm (45.64 cubic inches) |
|
Type of engine
|
V4, four-stroke |
|
Output
|
102.0 HP (74.5 kW)) @ 9500 RPM |
|
Torque
|
79.0 Nm (8.1 kgf-m or 58.3 ft.lbs) @ 8500 RPM |
|
Top speed
|
239.4 km/h (148.8 mph) |
|
Maximum RPM
|
12500 |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
70.0 x 48.6 mm (2.8 x 1.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. 4x 36mm Keihin CV |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet palte |
|
Fuel consumption
|
6.00 litres/100 km (16.7 km/l or 39.20 mpg) |
|
Greenhouse gases
|
139.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Twin-spar aluminum diamond |
|
Rake (fork angle)
|
26.0° |
|
Front suspension
|
41mm Showa cartridge forks, no external adjustment, |
|
Front wheel travel
|
140 mm (5.5 inches) |
|
Rear suspension
|
Pro-link single sided swingarm, adjustable preload and rebound damping |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
170/60-17 |
|
Front brakes
|
Double disc. 2 piston calipers |
|
Diameter
|
296 mm (11.7 inches) |
|
Rear brakes
|
Single disc. 1 piston caliper |
|
Diameter
|
256 mm (10.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
219.0 kg (482.8 pounds) |
|
Weight incl. oil, gas, etc
|
244.0 kg (537.9 pounds) |
|
Power/weight ratio
|
0.4658 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1185 mm (46.7 inches) |
|
Overall length
|
2180 mm (85.8 inches) |
|
Overall width
|
700 mm (27.6 inches) |
|
Wheelbase
|
1470 mm (57.9 inches) |
|
Fuel capacity
|
19.00 litres (5.02 US gallons) |
|
Reserve fuel capacity
|
4.50 litres (1.19 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
