General information |
|
Model
|

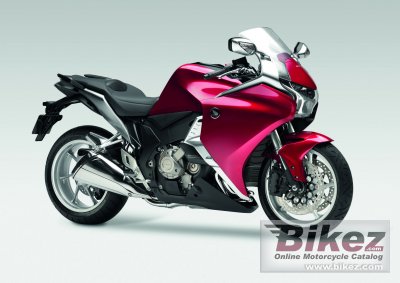

Honda VFR1200FD Dual Clutch Transmission |
|
Year model
|
2012 |
|
Type
|
Sport |
|
Rating
|
3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1237.0 ccm (75.48 cubic inches) |
|
Type of engine
|
V4, four-stroke |
|
Torque
|
129.0 Nm (13.2 kgf-m or 95.2 ft.lbs) @ 8750 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
81.0 x 60.0 mm (3.2 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Programmed Fuel Injection with automatic enrichment circuit, 44mm throttle bodies and 12-hole injectors |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital transistorized with electronic advance |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Electronic Dual Clutch |
|
Emission details
|
Meets current California Air Resources Board (CARB) and EPA standards. |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
101 mm (4.0 inches) |
|
Front suspension
|
43mm cartridge fork with spring-preload adjustability |
|
Front wheel travel
|
119 mm (4.7 inches) |
|
Rear suspension
|
Pro Arm single-side swingarm with Pro-Link single gas-charged shock with remote spring-preload adjustability and rebound-damping adjustability |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/55-ZR17 |
|
Front brakes
|
Double disc. 6-piston callipers, C-ABS and sintered metal pads |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. 2-piston calliper, C-ABS and sintered metal pads |
|
Diameter
|
276 mm (10.9 inches) |
|
Wheels
|
Die cast aluminium |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
277.0 kg (610.7 pounds) |
|
Seat height
|
815 mm (32.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1220 mm (48.0 inches) |
|
Overall length
|
2250 mm (88.6 inches) |
|
Overall width
|
740 mm (29.1 inches) |
|
Ground clearance
|
125 mm (4.9 inches) |
|
Wheelbase
|
1544 mm (60.8 inches) |
|
Fuel capacity
|
18.50 litres (4.89 US gallons) |
|
Other specifications |
|
Color options
|
Red, white, silver |
|
Starter
|
Electric |
