General information |
|
Model
|

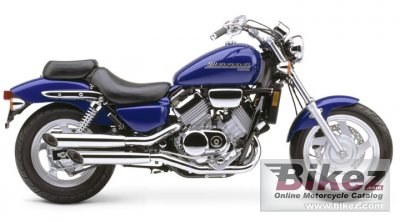

Honda VF 750 Magna |
|
Year of manufacture
|
2004 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 7499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
4.1 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
748.0 ccm (45.64 cubic inches) |
|
Type of engine
|
V4, four-stroke |
|
Compression
|
10.8:1 |
|
Bore x stroke
|
70.0 x 48.6 mm (2.8 x 1.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.6° |
|
Trail
|
161 mm (6.3 inches) |
|
Front suspension
|
41mm cartridge fork; 5.9-inch travel |
|
Rear suspension
|
Dual shocks with five-position spring-preload adjustability; 3.9-inch travel |
|
Front tire
|
120/80-17 |
|
Rear tire
|
150/80-15 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Seat height
|
711 mm (28.0 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1651 mm (65.0 inches) |
|
Fuel capacity
|
13.62 litres (3.60 US gallons) |
|
Reserve fuel capacity
|
3.02 litres (0.80 US gallons) |
|
Other specifications |
|
Color options
|
Candy Blue |
|
Starter
|
Electric |
