General information |
Model name
|

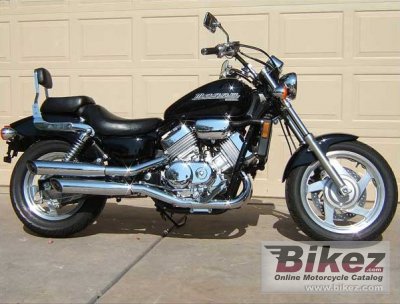

Honda VF 750 C Magna |
Model year
|
1997 |
Category
|
Custom / cruiser |
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
748.0 ccm (45.64 cubic inches) |
Engine type
|
V4, four-stroke |
Power output
|
78.0 HP (56.9 kW)) @ 9000 RPM |
Torque
|
65.4 Nm (6.7 kgf-m or 48.2 ft.lbs) @ 7250 RPM |
Compression
|
10.8:1 |
Bore x stroke
|
70.0 x 48.6 mm (2.8 x 1.9 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor. 4 x 32mm Keihin CV |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Digital |
Lubrication system
|
Wet sump |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet, multiplate |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
32.0° |
Trail
|
129 mm (5.1 inches) |
Front suspension
|
41mm air assisted forks, 4-way anti-dive adjustable |
Front wheel travel
|
150 mm (5.9 inches) |
Rear suspension
|
Dual shock |
Rear wheel travel
|
99 mm (3.9 inches) |
Front tire
|
120/80-17 |
Rear tire
|
150/80-15 |
Front brakes
|
Single disc. 1-piston caliper |
Diameter
|
315 mm (12.4 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
180 mm (7.1 inches) |
Physical measures and capacities |
Dry weight
|
228.0 kg (502.7 pounds) |
Weight incl. oil, gas, etc
|
244.5 kg (539.0 pounds) |
Power/weight ratio
|
0.3421 HP/kg |
Seat height
|
711 mm (28.0 inches) If adjustable, lowest setting. |
Overall length
|
2514 mm (99.0 inches) |
Wheelbase
|
1651 mm (65.0 inches) |
Fuel capacity
|
13.62 litres (3.60 US gallons) |
Oil capacity
|
3.10 litres (3.28 US quarts) |
Other specifications |
Starter
|
Electric |
Update specs | Report missing specs or required updates. |
Maintenance and service specs * |
Engine oil
|
SAE 10W-40 |
Brake fluid
|
DOT 4 |
Coolant
|
2.00 litres (0.53 US gallons) |
Spark plugs
|
NGK CR8EHIX-9 |
Idle speed
|
1000 +/- 100 RPM |
Chain size
|
530 |
Chain links
|
118 |
Sprockets
|
16/39 (front/rear) |
Tire pressure front
|
36 PSI (2.5 Bar or 250 kPa) |
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
Fork tube size
|
41 mm (1.6 inches) |
*) Always verify maintenance and service data with the bike owner's manual. |
