General information |
|
Motorcycle name
|

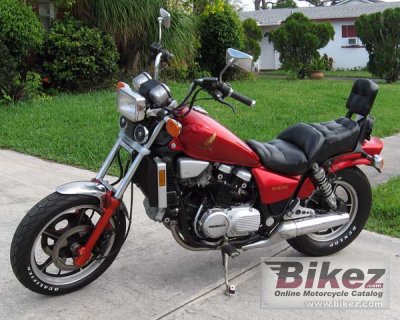

Honda VF 700 C Magna |
|
Year model
|
1986 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
699.0 ccm (42.65 cubic inches) |
|
Type of engine
|
V4, four-stroke |
|
Effect
|
81.0 HP (59.1 kW)) @ 10000 RPM |
|
Torque
|
62.0 Nm (6.3 kgf-m or 45.7 ft.lbs) |
|
1/4 mile (0.4 km)
|
12.00 seconds |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
70.0 x 45.0 mm (2.8 x 1.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. 4x32mm Keihin |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Transistorized / electric |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Wet plate |
|
Fuel consumption
|
5.22 litres/100 km (19.2 km/l or 45.06 mpg) |
|
Greenhouse gases
|
121.1 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
4 in 2 stainless steel pipes |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
110/90-18 |
|
Rear tire
|
130/90-16 |
|
Front brakes
|
Double disc. ยด2-piston calipers |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
240.0 kg (529.1 pounds) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
