General information |
Motorcycle name
|

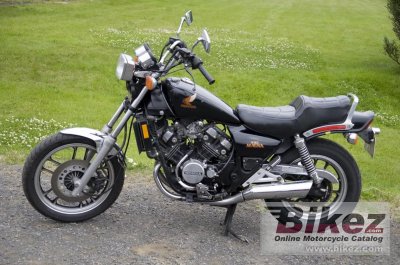

Honda V30 Magna |
Model year
|
1984 |
Category
|
Custom / cruiser |
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
498.0 ccm (30.39 cubic inches) |
Engine type
|
V4, four-stroke |
Power output
|
64.0 HP (46.7 kW)) @ 10500 RPM |
Torque
|
43.0 Nm (4.4 kgf-m or 31.7 ft.lbs) @ 10500 RPM |
Top speed
|
197.0 km/h (122.4 mph) |
1/4 mile (0.4 km)
|
12.79 seconds |
Max RPM
|
12500 |
Compression
|
11.0:1 |
Bore x stroke
|
60.0 x 44.0 mm (2.4 x 1.7 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor. Four 32mm CV |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Solid State |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet clutch |
Driveline
|
Sealed O-rind chain |
Fuel consumption
|
5.19 litres/100 km (19.3 km/l or 45.32 mpg) |
Greenhouse gases
|
120.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
Exhaust system
|
Double stainless steel pipes |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
35.1° |
Trail
|
112 mm (4.4 inches) |
Front brakes
|
Single disc. 2-piston calipers |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Dry weight
|
180.0 kg (396.9 pounds) |
Power/weight ratio
|
0.3555 HP/kg |
Seat height
|
759 mm (29.9 inches) If adjustable, lowest setting. |
Wheelbase
|
1483 mm (58.4 inches) |
Fuel capacity
|
14.00 litres (3.70 US gallons) |
Other specifications |
Color options
|
Black or Red |
Starter
|
Electric |
