| General information |
|---|

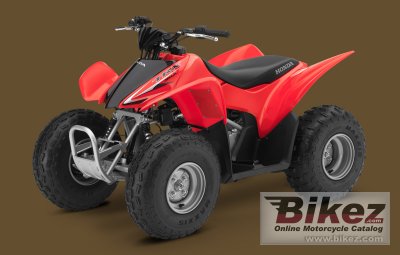

| Model: | Honda TRX90X |
| Year: | 2013 |
| Category: | ATV |
| Price as new: | US$ 2999. MSRP depends on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 86.0 ccm (5.25 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Bore x stroke: | 47.0 x 49.5 mm (1.9 x 1.9 inches) |
| Fuel system: | Carburettor. 15mm piston-valve carburetor |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | CDI |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Automatic |
| Driveline: | O-ring-sealed chain |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independent suspension |
| Front wheel travel: | 66 mm (2.6 inches) |
| Rear suspension: | Swingarm with single shock |
| Rear wheel travel: | 66 mm (2.6 inches) |
| Front tire: | 20/7-8 |
| Rear tire: | 19/8-8 |
| Front brakes: | Double disc |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 118.8 kg (262.0 pounds) |
| Seat height: | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall height: | 927 mm (36.5 inches) |
| Overall length: | 1488 mm (58.6 inches) |
| Overall width: | 894 mm (35.2 inches) |
| Ground clearance: | 99 mm (3.9 inches) |
| Wheelbase: | 983 mm (38.7 inches) |
| Fuel capacity: | 6.43 litres (1.70 gallons) |
| Other specifications |
|---|
| Color options: | Red |
| Starter: | Electric |
| Factory warranty: | 1 year |
| Comments: | Model ID: TRX90X |
