General information |
|
Model name
|

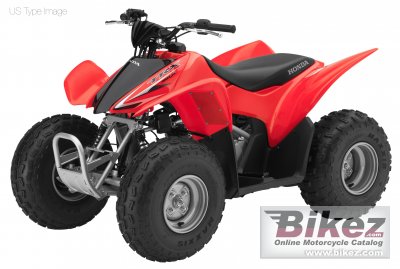

Honda TRX90X |
|
Year of manufacture
|
2012 |
|
Type
|
ATV |
| Price as new | US$ 2999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
86.0 ccm (5.25 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
47.0 x 49.5 mm (1.9 x 1.9 inches) |
|
Fuel system
|
Carburettor. 15mm piston-valve carburetor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Automatic |
|
Driveline
|
O-ring-sealed chain |
|
Emission details
|
Meets current California Air Resources Board (CARB) off-road emissions standards. |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent suspension |
|
Front wheel travel
|
66 mm (2.6 inches) |
|
Rear suspension
|
Swingarm with single shock |
|
Rear wheel travel
|
66 mm (2.6 inches) |
|
Front tire
|
20/7-8 |
|
Rear tire
|
19/8-8 |
|
Front brakes
|
Sealed multidisc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
118.8 kg (262.0 pounds) |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Overall height
|
927 mm (36.5 inches) |
|
Overall length
|
1488 mm (58.6 inches) |
|
Overall width
|
894 mm (35.2 inches) |
|
Ground clearance
|
99 mm (3.9 inches) |
|
Wheelbase
|
983 mm (38.7 inches) |
|
Fuel capacity
|
6.43 litres (1.70 US gallons) |
|
Other specifications |
|
Color options
|
Red |
|
Starter
|
Electric |
|
Factory warranty
|
1 year |
|
Comments
|
Model ID: TRX90X |
