Honda TRX90X 20112011 Honda TRX90X specifications, pictures, reviews and rating |

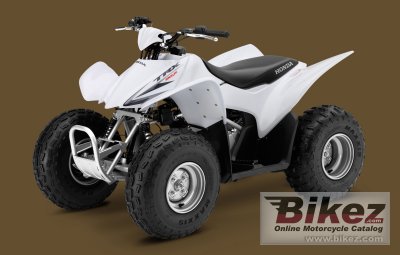

2011 Honda TRX90X. Image credits - Honda.
| Honda's profilation of this bike |
| With a great family sport like ATVing, you want to make sure your kids start out with the right equipment. Which is why we created the TRX90X. It´s just the perfect combination of fun, agility, reliability and easy operation—all human-engineered to give your younger riders the right start for a lifetime of off-road fun. |
| General information | |
|---|---|
| Motorcycle name | Honda TRX90X |
| Model year | 2011 |
| Category | ATV |
| Price as new | US$ 2999. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 86.0 ccm (5.25 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 47.0 x 49.5 mm (1.9 x 1.9 inches) |
| Fuel system | Carburettor. 15mm piston-valve carburetor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Clutch | Automatic |
| Driveline | O-ring-sealed chain |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent suspension |
| Front wheel travel | 66 mm (2.6 inches) |
| Rear suspension | Swingarm with single shock |
| Rear wheel travel | 66 mm (2.6 inches) |
| Front tire | 20/7-8 |
| Rear tire | 19/8-8 |
| Front brakes | Double disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 118.8 kg (262.0 pounds) |
| Seat height | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall height | 927 mm (36.5 inches) |
| Overall length | 1488 mm (58.6 inches) |
| Overall width | 894 mm (35.2 inches) |
| Ground clearance | 99 mm (3.9 inches) |
| Wheelbase | 983 mm (38.7 inches) |
| Fuel capacity | 6.43 litres (1.70 US gallons) |
| Other specifications | |
| Color options | Red, White |
| Starter | Electric |
| Factory warranty | 1 year. Transferable, unlimited mileage limited warranty |
| Comments | Model ID: TRX90X |
