General information |
Model name
|

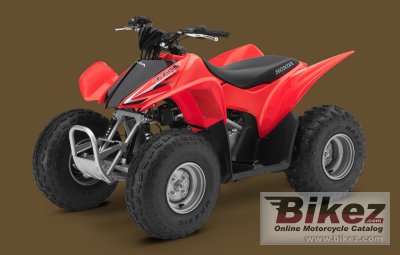

Honda TRX90X |
Year
|
2010 |
Category
|
ATV |
Price as new | US$ 2999. MSRP depends on country, taxes, accessories, etc. |
Rating
|
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission |
Displacement
|
86.0 ccm (5.25 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Compression
|
12.0:1 |
Bore x stroke
|
47.0 x 49.5 mm (1.9 x 1.9 inches) |
Fuel system
|
Carburettor. 15mm piston-valve carburetor |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
CDI |
Cooling system
|
Air |
Gearbox
|
4-speed |
Clutch
|
Automatic |
Chassis, suspension, brakes and wheels |
Front suspension
|
Independent suspension |
Front wheel travel
|
66 mm (2.6 inches) |
Rear suspension
|
Swingarm with single shock |
Rear wheel travel
|
66 mm (2.6 inches) |
Front tire
|
20/7-8 |
Rear tire
|
19/8-8 |
Front brakes
|
Single disc |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
118.8 kg (262.0 pounds) |
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
Overall height
|
927 mm (36.5 inches) |
Overall length
|
1488 mm (58.6 inches) |
Overall width
|
894 mm (35.2 inches) |
Ground clearance
|
99 mm (3.9 inches) |
Wheelbase
|
983 mm (38.7 inches) |
Fuel capacity
|
6.43 litres (1.70 US gallons) |
Other specifications |
Color options
|
Red, White |
Starter
|
Electric |
Comments
|
Model ID: TRX90X. |
