Honda's profilation of this bike |

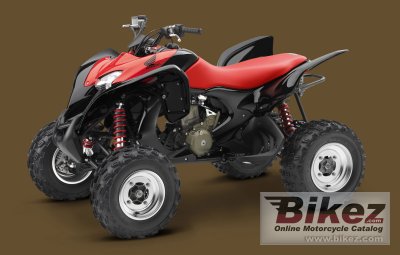

Cast your eyes upon the 2009 TRX700XX, the biggest, toughest sport ATV Honda has ever created. The TRX700XX isn´t just the most powerful ATV we have ever built, with its thundering 686cc, SOHC, liquid-cooled, fuel-injected, four-valve four-stroke engine. |
General information |
Motorcycle name
|
Honda TRX700XX |
Year
|
2011 |
Category
|
ATV |
Price as new | US$ 8499. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.2 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Displacement
|
686.0 ccm (41.86 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Bore x stroke
|
102.0 x 84.0 mm (4.0 x 3.3 inches) |
Fuel system
|
Injection. Keihin PGM-FI with a 44mm throttle-body fuel injection system |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Full transistorized with electronic advance |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Manual |
Driveline
|
O-ring-sealed #520 chain |
Chassis, suspension, brakes and wheels |
Front suspension
|
Independent double-wishbone with dual single-rate springs provide 10.5 inches travel |
Rear suspension
|
Independent double-wishbone with piggy-back reservoir shocks provide 9.3 inches travel |
Front tire
|
21/7-10 |
Rear tire
|
22/9-11 |
Front brakes
|
Double disc |
Diameter
|
174 mm (6.9 inches) |
Rear brakes
|
Single disc |
Diameter
|
200 mm (7.9 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
229.1 kg (505.0 pounds) |
Seat height
|
838 mm (33.0 inches) If adjustable, lowest setting. |
Overall height
|
1153 mm (45.4 inches) |
Overall length
|
1877 mm (73.9 inches) |
Overall width
|
1176 mm (46.3 inches) |
Ground clearance
|
267 mm (10.5 inches) |
Wheelbase
|
1260 mm (49.6 inches) |
Fuel capacity
|
11.36 litres (3.00 US gallons) |
Other specifications |
Color options
|
Metallic Black with graphics, Metallic Black/Silver, Metallic Black/Red |
Starter
|
Electric |
Comments
|
Model ID: TRX700XX |
