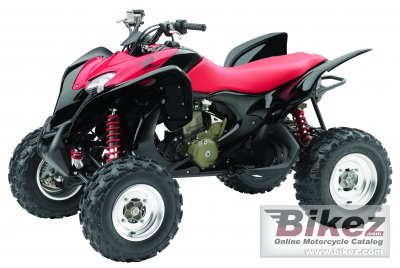

Honda TRX700XX 20092009 Honda TRX700XX specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| The 2009 TRX700XX, the biggest, toughest sport ATV Honda has ever created, with its thundering 686cc, SOHC, liquid-cooled, fuel-injected, four-valve four-stroke engine. |
| General information | |
|---|---|
| Model name | Honda TRX700XX |
| Model year | 2009 |
| Category | ATV |
| Price as new | US$ 7999. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 686.0 ccm (41.86 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Bore x stroke | 102.0 x 84.0 mm (4.0 x 3.3 inches) |
| Fuel system | Injection. Keihin PGM-FI with a 44mm throttle-body fuel injection system |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CD with electronic advance |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Manual |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double-wishbone with dual single-rate springs provide 10.6 inches travel |
| Rear suspension | Independent double-wishbone with piggy-back reservoir shocks provide 9.3 inches travel |
| Front tire | 21/7-10 |
| Rear tire | 21/7-10 |
| Front brakes | Double disc |
| Diameter | 174 mm (6.9 inches) |
| Rear brakes | Single disc |
| Diameter | 200 mm (7.9 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 229.1 kg (505.0 pounds) |
| Seat height | 831 mm (32.7 inches) If adjustable, lowest setting. |
| Overall height | 1135 mm (44.7 inches) |
| Overall length | 1816 mm (71.5 inches) |
| Overall width | 1166 mm (45.9 inches) |
| Ground clearance | 267 mm (10.5 inches) |
| Wheelbase | 1260 mm (49.6 inches) |
| Fuel capacity | 11.35 litres (3.00 US gallons) |
| Other specifications | |
| Color options | Black/Red, Black, Dark Silver Metallic |
| Starter | Electric |
| Comments | Model ID: TRX700XX |
| Update specs | Report missing specs or required updates. |
