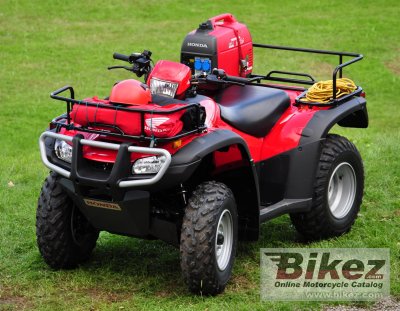

Honda TRX500FA 20112011 Honda TRX500FA specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Honda TRX500FA |
| Model year | 2011 |
| Category | ATV |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 499.0 ccm (30.45 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Bore x stroke | 92.0 x 75.0 mm (3.6 x 3.0 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. 36mm constant velocity carburator |
| Fuel control | Overhead Valves (OHV) |
| Ignition | CD with electronic advance |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Automatic |
| Driveline | TraxLok selectable 2WD/4WD system. |
| Emission details | CARB and EPA off-road emissions standards. |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double-wishbone |
| Front wheel travel | 170 mm (6.7 inches) |
| Rear suspension | Swingarm with dual shock absorbers |
| Rear wheel travel | 170 mm (6.7 inches) |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Single disc |
| Diameter | 180 mm (7.1 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 285.8 kg (630.0 pounds) |
| Seat height | 861 mm (33.9 inches) If adjustable, lowest setting. |
| Overall height | 1179 mm (46.4 inches) |
| Overall length | 2108 mm (83.0 inches) |
| Overall width | 1189 mm (46.8 inches) |
| Ground clearance | 191 mm (7.5 inches) |
| Wheelbase | 1285 mm (50.6 inches) |
| Fuel capacity | 15.14 litres (4.00 US gallons) |
| Other specifications | |
| Color options | Red, Olive, Natural Gear Camouflage |
| Starter | Electric |
| Factory warranty | 1 year. Transferable, unlimited mileage limited warranty |
| Comments | Electric Power Steering. 20-watt integrated carburetor heater for reliable cold-weather starting. Model ID: TRX500FA. |
| Update specs | Report missing specs or required updates. |
