General information |
Model
|

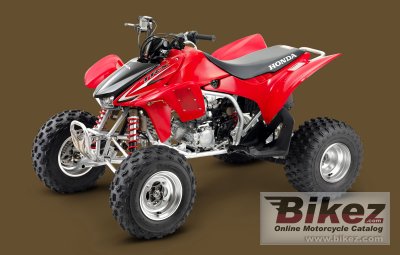

Honda TRX450R Kick Start |
Year
|
2009 |
Category
|
ATV |
Price as new | US$ 6999. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.4 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Displacement
|
450.0 ccm (27.46 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Compression
|
12.0:1 |
Bore x stroke
|
96.0 x 62.0 mm (3.8 x 2.4 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor. Keihin 40.0mm flat slide with throttle position sensor (TPS) |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
CD with electronic advance |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Chassis, suspension, brakes and wheels |
Front suspension
|
Independent double-wishbone with Showa shocks, featuring adjustable spring preload, rebound and compression damping |
Front wheel travel
|
213 mm (8.4 inches) |
Rear suspension
|
Pro-Link with single Showa shock featuring adjustable spring preload, rebound and compression damping |
Rear wheel travel
|
236 mm (9.3 inches) |
Front tire
|
22/7-10 |
Rear tire
|
20/10-10 |
Front brakes
|
Double disc |
Diameter
|
174 mm (6.9 inches) |
Rear brakes
|
Single disc |
Diameter
|
190 mm (7.5 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
173.7 kg (383.0 pounds) |
Seat height
|
833 mm (32.8 inches) If adjustable, lowest setting. |
Overall height
|
1100 mm (43.3 inches) |
Overall length
|
1862 mm (73.3 inches) |
Overall width
|
1176 mm (46.3 inches) |
Ground clearance
|
112 mm (4.4 inches) |
Wheelbase
|
1275 mm (50.2 inches) |
Fuel capacity
|
10.21 litres (2.70 US gallons) |
Other specifications |
Color options
|
Red |
Starter
|
Kick |
Comments
|
Model ID: TRX450R |
