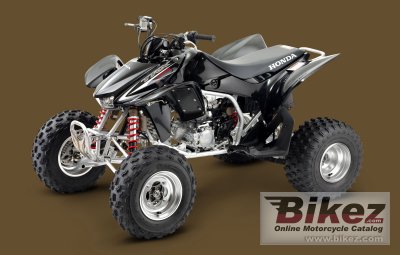

Honda TRX450R Elec Start 20092009 Honda TRX450R Elec Start specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| The Honda TRX450R stands tall as one of the hottest, most dominant sport ATVs ever built. Check out its nearly endless tally of race wins and championships, including three (and counting) Baja 1000 titles. |
| General information | |
|---|---|
| Motorcycle name | Honda TRX450R Elec Start |
| Year model | 2009 |
| Type | ATV |
| Price as new | US$ 7149. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.6 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 450.0 ccm (27.46 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 96.0 x 62.0 mm (3.8 x 2.4 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Keihin 40.0mm flat slide with throttle position sensor (TPS) |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CD with electronic advance |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double-wishbone with Showa shocks, featuring adjustable spring preload, rebound and compression damping |
| Front wheel travel | 213 mm (8.4 inches) |
| Rear suspension | Pro-Link with single Showa shock featuring adjustable spring preload, rebound and compression damping |
| Rear wheel travel | 229 mm (9.0 inches) |
| Front tire | 22/7-10 |
| Rear tire | 20/10-10 |
| Front brakes | Double disc |
| Diameter | 174 mm (6.9 inches) |
| Rear brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 176.9 kg (390.0 pounds) |
| Seat height | 833 mm (32.8 inches) If adjustable, lowest setting. |
| Overall height | 1100 mm (43.3 inches) |
| Overall length | 1862 mm (73.3 inches) |
| Overall width | 1176 mm (46.3 inches) |
| Ground clearance | 112 mm (4.4 inches) |
| Wheelbase | 1275 mm (50.2 inches) |
| Fuel capacity | 10.21 litres (2.70 US gallons) |
| Other specifications | |
| Color options | White, Red, Black |
| Starter | Electric |
| Comments | Model ID: TRX450ER |
