General information |
|
Model name
|

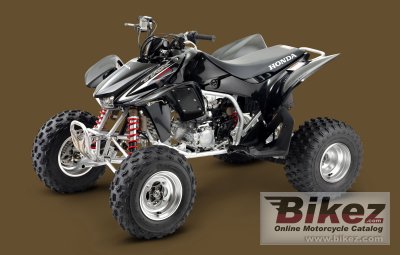

Honda TRX450R E |
|
Model year
|
2011 |
|
Category
|
ATV |
| Price as new | US$ 7499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
450.0 ccm (27.46 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
96.0 x 62.0 mm (3.8 x 2.4 inches) |
|
Fuel system
|
Carburettor. Keihin 40mm flat slide carburetor with throttle position sensor (TPS) |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CD with electronic advance |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double-wishbone with Showa shocks, featuring adjustable spring preload, rebound and compression damping |
|
Front wheel travel
|
213 mm (8.4 inches) |
|
Rear suspension
|
Pro-Link with single Showa shock featuring adjustable spring preload, rebound and compression damping |
|
Rear wheel travel
|
236 mm (9.3 inches) |
|
Front tire
|
22/7-10 |
|
Rear tire
|
20/10-9 |
|
Front brakes
|
Double disc |
|
Diameter
|
174 mm (6.9 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
176.0 kg (388.0 pounds) |
|
Seat height
|
833 mm (32.8 inches) If adjustable, lowest setting. |
|
Overall height
|
1100 mm (43.3 inches) |
|
Overall length
|
1862 mm (73.3 inches) |
|
Ground clearance
|
112 mm (4.4 inches) |
|
Wheelbase
|
1275 mm (50.2 inches) |
|
Fuel capacity
|
10.22 litres (2.70 US gallons) |
|
Reserve fuel capacity
|
3.03 litres (0.80 US gallons) |
|
Other specifications |
|
Color options
|
Red, White, White with Orange Flame |
|
Starter
|
Electric |
|
Comments
|
Model ID: TRX450ER |
