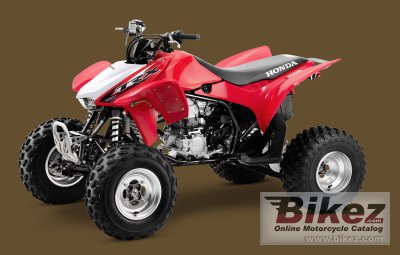

Honda TRX450R 20132013 Honda TRX450R specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| We build ATVs for lots of riders: Farmers, ranchers, hunters, explorers. But the TRX450R is built for a different kind of rider: Winners. Because the TRX450R has one mission: to get you to the finish line first. |
| General information | |
|---|---|
| Motorcycle name | Honda TRX450R |
| Year | 2013 |
| Category | ATV |
| Price as new | US$ 7799. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 450.0 ccm (27.46 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 96.0 x 62.0 mm (3.8 x 2.4 inches) |
| Fuel system | Carburettor. Keihin 40mm flat-slide carburetor with Throttle Position Sensor (TPS) |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CD with electronic advance |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Driveline | O-ring-sealed chain |
| Emission details | Meets current California Air Resources Board (CARB) off-road emissions standards. |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double-wishbone with Showa shocks, featuring adjustable spring-preload, rebound and compression-damping |
| Front wheel travel | 213 mm (8.4 inches) |
| Rear suspension | Pro-Link with single Showa shock featuring adjustable spring-preload, rebound- and compression damping |
| Rear wheel travel | 236 mm (9.3 inches) |
| Front tire | 21/7-10 |
| Rear tire | 20/10-9 |
| Front brakes | Double disc. Hydraulic. Two-piston calipers. |
| Diameter | 174 mm (6.9 inches) |
| Rear brakes | Single disc. Hydraulic. Single-piston caliper. |
| Diameter | 190 mm (7.5 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 176.0 kg (388.0 pounds) |
| Seat height | 833 mm (32.8 inches) If adjustable, lowest setting. |
| Overall height | 1100 mm (43.3 inches) |
| Overall length | 1862 mm (73.3 inches) |
| Overall width | 1176 mm (46.3 inches) |
| Ground clearance | 112 mm (4.4 inches) |
| Wheelbase | 1275 mm (50.2 inches) |
| Fuel capacity | 10.22 litres (2.70 US gallons) |
| Other specifications | |
| Color options | Red, Special Edition Tri-color |
| Starter | Electric |
| Factory warranty | One year. Unlimited milage. Transferable. |
| Comments | Model ID: TRX450ER |
