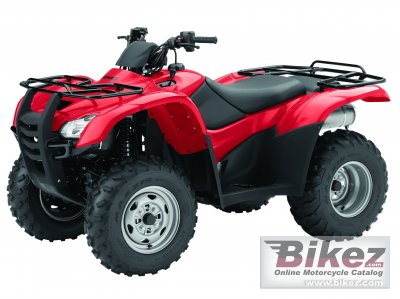

Honda TRX420FPM 20112011 Honda TRX420FPM specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| America´s favorite ATV. With power steering. |
| General information | |
|---|---|
| Model name | Honda TRX420FPM |
| Year | 2011 |
| Category | ATV |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 420.0 ccm (25.63 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Bore x stroke | 86.5 x 71.5 mm (3.4 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Programmed Fuel Injection (PGM-FI) |
| Ignition | Full-transistorized type with electronic advance |
| Lubrication system | Semi-dry-sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Automatic |
| Driveline | TraxLok 2WD/4WD with 5-speed transmission and Electric Shift Program. Direct front and rear driveshafts. |
| Emission details | Meets California Air Resources Board (CARB) and EPA off-road emissions standards. |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double-wishbone |
| Front wheel travel | 160 mm (6.3 inches) |
| Rear suspension | Swingarm with single shock |
| Rear wheel travel | 160 mm (6.3 inches) |
| Front tire | 24/8-12 |
| Rear tire | 24/10-11 |
| Front brakes | Double disc. Hydraulic |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 273.5 kg (603.0 pounds) |
| Seat height | 823 mm (32.4 inches) If adjustable, lowest setting. |
| Overall height | 1146 mm (45.1 inches) |
| Overall length | 2055 mm (80.9 inches) |
| Overall width | 1171 mm (46.1 inches) |
| Ground clearance | 231 mm (9.1 inches) |
| Wheelbase | 1255 mm (49.4 inches) |
| Fuel capacity | 13.24 litres (3.50 US gallons) |
| Reserve fuel capacity | 3.78 litres (1.00 US gallons) |
| Other specifications | |
| Color options | White, Red, Olive, Camo |
| Starter | Electric |
| Factory warranty | 1 year, transferable limited warranty. |
| Comments | Model Id: TRX420FPM. |
