General information |
Motorcycle name
|

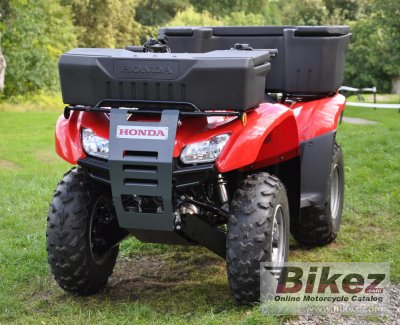

Honda TRX420FA |
Model year
|
2011 |
Category
|
ATV |
Rating
|
3.9 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Displacement
|
420.0 ccm (25.63 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Bore x stroke
|
86.5 x 71.5 mm (3.4 x 2.8 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. PGM-FI |
Fuel control
|
Overhead Valves (OHV) |
Ignition
|
Full-transistorized type with electronic advance |
Lubrication system
|
semi-dry-sump |
Cooling system
|
Liquid |
Gearbox
|
Automatic |
Clutch
|
Automatic |
Driveline
|
Driveline Direct front and rear driveshafts |
Chassis, suspension, brakes and wheels |
Frame type
|
Independent double-wishbone; 6.3 inches travel |
Front suspension
|
Independent double-wishbone |
Front wheel travel
|
160 mm (6.3 inches) |
Rear suspension
|
Independent double-wishbone |
Rear wheel travel
|
160 mm (6.3 inches) |
Front tire
|
24/8-12 |
Rear tire
|
24/10-11 |
Front brakes
|
Double disc. Hydraulic |
Rear brakes
|
Single disc. Hydraulic |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
282.6 kg (623.0 pounds) |
Seat height
|
823 mm (32.4 inches) If adjustable, lowest setting. |
Overall height
|
1146 mm (45.1 inches) |
Overall length
|
2055 mm (80.9 inches) |
Overall width
|
1171 mm (46.1 inches) |
Ground clearance
|
231 mm (9.1 inches) |
Wheelbase
|
1255 mm (49.4 inches) |
Fuel capacity
|
13.24 litres (3.50 US gallons) |
Reserve fuel capacity
|
3.78 litres (1.00 US gallons) |
Other specifications |
Color options
|
White, Red, Olive, Camo |
Starter
|
Electric |
Factory warranty
|
1 year |
Comments
|
With reverse. Model named Honda FourTrax Ranger AT in some markets. Model Id: TRX420FA. |
