Honda TRX420FA 20092009 Honda TRX420FA specifications, pictures, reviews and rating |

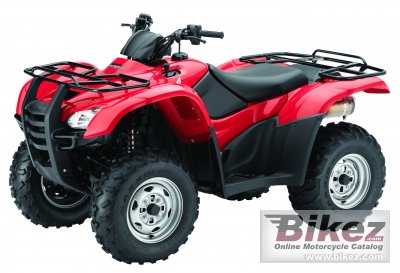

2009 Honda TRX420FA. Image credits - Honda.
| General information | |
|---|---|
| Motorcycle name | Honda TRX420FA |
| Year model | 2009 |
| Type | ATV |
| Price as new | US$ 6599. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.1 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 420.0 ccm (25.63 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Bore x stroke | 86.5 x 71.5 mm (3.4 x 2.8 inches) |
| Fuel system | Injection. Programmed Fuel Injection (PGM-FI), 34mm throttle bodies |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Full-transistorized type with electronic advance |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Chassis, suspension, brakes and wheels | |
| Frame type | Independent double-wishbone; 6.3 inches travel |
| Front suspension | Independent double-wishbone |
| Front wheel travel | 160 mm (6.3 inches) |
| Rear suspension | Independent double-wishbone |
| Rear wheel travel | 160 mm (6.3 inches) |
| Front tire | 24/8-12 |
| Rear tire | 24/10-11 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 282.6 kg (623.0 pounds) |
| Seat height | 823 mm (32.4 inches) If adjustable, lowest setting. |
| Overall height | 1146 mm (45.1 inches) |
| Overall length | 2055 mm (80.9 inches) |
| Overall width | 1171 mm (46.1 inches) |
| Ground clearance | 231 mm (9.1 inches) |
| Wheelbase | 1255 mm (49.4 inches) |
| Fuel capacity | 13.24 litres (3.50 US gallons) |
| Reserve fuel capacity | 3.78 litres (1.00 US gallons) |
| Other specifications | |
| Color options | White, Red, Olive, Camo |
| Starter | Electric |
| Comments | With reverse. Model named Honda FourTrax Ranger AT in some markets. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Honda TRX420FA discussion group or the general Honda discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
