General information |
|
Model
|

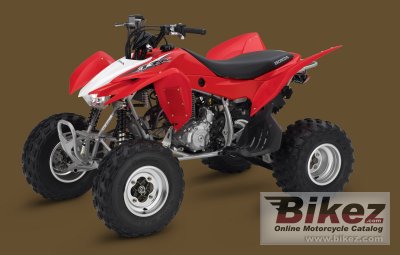

Honda TRX400X |
|
Year of manufacture
|
2013 |
|
Type
|
ATV |
| Price as new | US$ 6399. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
397.0 ccm (24.22 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
85.0 x 70.0 mm (3.3 x 2.8 inches) |
|
Ignition
|
CD with electronic advance |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Manual |
|
Driveline
|
O-ring-sealed chain |
|
Emission details
|
Meets current California Air Resources Board (CARB) off-road emissions standards. |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double-wishbone with Showa shocks, five-position spring preload adjustability |
|
Front wheel travel
|
208 mm (8.2 inches) |
|
Rear suspension
|
Pro-Link fully adjustable single Showa shock |
|
Rear wheel travel
|
231 mm (9.1 inches) |
|
Front tire
|
22/7-10 |
|
Rear tire
|
20/10-9 |
|
Front brakes
|
Double disc. Hydraulic. |
|
Diameter
|
174 mm (6.9 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
185.1 kg (408.0 pounds) |
|
Seat height
|
836 mm (32.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1118 mm (44.0 inches) |
|
Overall length
|
1821 mm (71.7 inches) |
|
Overall width
|
1156 mm (45.5 inches) |
|
Ground clearance
|
104 mm (4.1 inches) |
|
Wheelbase
|
1217 mm (47.9 inches) |
|
Fuel capacity
|
9.84 litres (2.60 US gallons) |
|
Other specifications |
|
Color options
|
Red |
|
Starter
|
Electric |
|
Factory warranty
|
One year |
|
Comments
|
Model ID: TRX400X |
