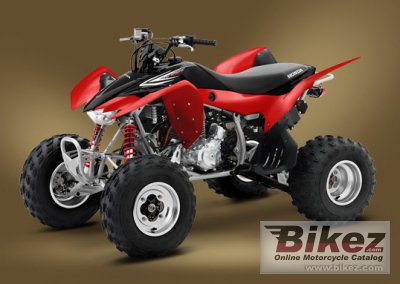

Honda TRX400X 20122012 Honda TRX400X specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| Relentless. Tireless. Tenacious. There are plenty of things you can say about the Honda TRX400X, but to fully understand it, you have to experience it. That’s because underneath the race-style bodywork lies everything the warrior ATV rider needs, starting with the SOHC, 397cc, air-cooled, dry-sump RFVD engine. Then there’s the triple-disc brakes. |
| General information | |
|---|---|
| Model name | Honda TRX400X |
| Model year | 2012 |
| Category | ATV |
| Price as new | US$ 6299. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.9 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 397.0 ccm (24.22 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 85.0 x 70.0 mm (3.3 x 2.8 inches) |
| Ignition | CD with electronic advance |
| Lubrication system | Dry sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Manual |
| Driveline | O-ring-sealed chain |
| Emission details | Meets current California Air Resources Board (CARB) off-road emissions standards. |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double-wishbone with Showa shocks, five-position spring preload adjustability |
| Front wheel travel | 208 mm (8.2 inches) |
| Rear suspension | Pro-Link fully adjustable single Showa shock |
| Rear wheel travel | 231 mm (9.1 inches) |
| Front tire | 22/7-10 |
| Rear tire | 20/10-9 |
| Front brakes | Double disc |
| Diameter | 174 mm (6.9 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 185.1 kg (408.0 pounds) |
| Seat height | 836 mm (32.9 inches) If adjustable, lowest setting. |
| Overall height | 1118 mm (44.0 inches) |
| Overall length | 1821 mm (71.7 inches) |
| Overall width | 1156 mm (45.5 inches) |
| Ground clearance | 104 mm (4.1 inches) |
| Wheelbase | 1217 mm (47.9 inches) |
| Fuel capacity | 9.84 litres (2.60 US gallons) |
| Reserve fuel capacity | 1.51 litres (0.40 US gallons) |
| Other specifications | |
| Color options | Black/Red |
| Factory warranty | One year |
| Comments | Model ID: TRX400X |
