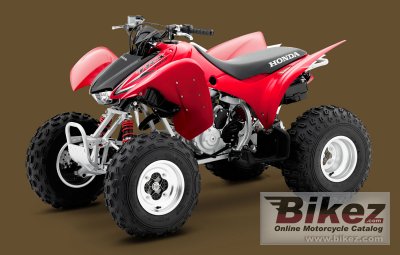

Honda TRX300X 20122012 Honda TRX300X specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| We wrapped it all up with our renowned reliability, legendary quality, and unique brand of intelligent human engineering. Bottom line: It´s a Honda, and in the ATV world it just doesn´t get any better than that—no matter how much you want to pay. |
| General information | |
|---|---|
| Motorcycle name | Honda TRX300X |
| Year model | 2012 |
| Type | ATV |
| Price as new | US$ 5299. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 282.0 ccm (17.21 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 74.0 x 65.5 mm (2.9 x 2.6 inches) |
| Fuel system | Carburettor. 32mm piston-valve with accelerator pump carburetor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CD with electronic advance |
| Lubrication system | Dry sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Manual |
| Driveline | O-ring-sealed chain |
| Emission details | Meets current California Air Resources Board (CARB) off-road emissions standards. |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double-wishbone with dual hydraulic shocks |
| Front wheel travel | 180 mm (7.1 inches) |
| Rear suspension | Swingarm with single shock |
| Rear wheel travel | 201 mm (7.9 inches) |
| Front tire | 22/7-10 |
| Rear tire | 22/10-9 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 176.0 kg (388.0 pounds) |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height | 1062 mm (41.8 inches) |
| Overall length | 1720 mm (67.7 inches) |
| Overall width | 1105 mm (43.5 inches) |
| Ground clearance | 117 mm (4.6 inches) |
| Wheelbase | 1143 mm (45.0 inches) |
| Fuel capacity | 8.33 litres (2.20 US gallons) |
| Reserve fuel capacity | 1.89 litres (0.50 US gallons) |
| Other specifications | |
| Color options | Red, White |
| Starter | Electric |
| Factory warranty | 1 year |
| Comments | Model ID: TRX300X |
