General information |
|
Model
|

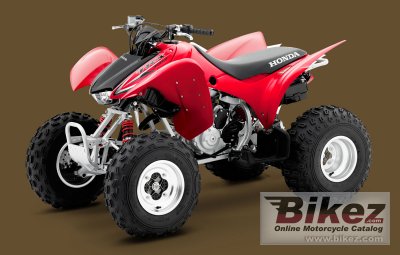

Honda TRX300X |
|
Year
|
2011 |
|
Category
|
ATV |
| Price as new | US$ 5299. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
282.0 ccm (17.21 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
74.0 x 65.5 mm (2.9 x 2.6 inches) |
|
Fuel system
|
Carburettor. 32mm piston-valve with accelerator pump carburetor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CD with electronic advance |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Manual |
|
Driveline
|
O-ring-sealed chain |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double-wishbone with dual hydraulic shocks |
|
Front wheel travel
|
180 mm (7.1 inches) |
|
Rear suspension
|
Swingarm with single shock |
|
Rear wheel travel
|
201 mm (7.9 inches) |
|
Front tire
|
22/7-10 |
|
Rear tire
|
22/10-9 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
176.0 kg (388.0 pounds) |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1062 mm (41.8 inches) |
|
Overall length
|
1720 mm (67.7 inches) |
|
Overall width
|
1105 mm (43.5 inches) |
|
Ground clearance
|
117 mm (4.6 inches) |
|
Wheelbase
|
1143 mm (45.0 inches) |
|
Fuel capacity
|
8.33 litres (2.20 US gallons) |
|
Other specifications |
|
Color options
|
Red, White |
|
Starter
|
Electric |
|
Factory warranty
|
1 year. Transferable, unlimited mileage limited warranty. |
|
Comments
|
Model ID: TRX300X |
