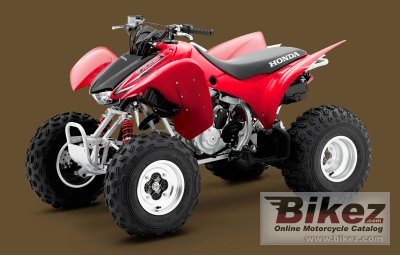

Honda TRX300X 20092009 Honda TRX300X specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| The TRX300X is endowed with a 282cc Honda SOHC engine, push-button electric start, a race-style chain final-drive system, a solid five-speed-with-reverse transmission and a double-wishbone front suspension. |
| General information | |
|---|---|
| Motorcycle name | Honda TRX300X |
| Model year | 2009 |
| Category | ATV |
| Price as new | US$ 5049. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.5 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 282.0 ccm (17.21 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 74.0 x 65.5 mm (2.9 x 2.6 inches) |
| Fuel system | Carburettor. 32mm piston-valve with accelerator pump carburetor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CD with electronic advance |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Manual |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double-wishbone with dual hydraulic shocks |
| Front wheel travel | 180 mm (7.1 inches) |
| Rear suspension | Swingarm with single shock |
| Rear wheel travel | 201 mm (7.9 inches) |
| Front tire | 22/7-10 |
| Rear tire | 22/10-10 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 176.9 kg (390.0 pounds) |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height | 1062 mm (41.8 inches) |
| Overall length | 1720 mm (67.7 inches) |
| Overall width | 1105 mm (43.5 inches) |
| Ground clearance | 117 mm (4.6 inches) |
| Wheelbase | 1143 mm (45.0 inches) |
| Fuel capacity | 8.32 litres (2.20 US gallons) |
| Other specifications | |
| Color options | White, Red |
| Starter | Electric |
| Comments | Model ID: TRX300X |
