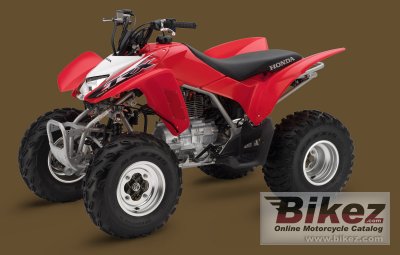

Honda TRX250X 20132013 Honda TRX250X specifications, pictures, reviews and rating |
| Honda's profilation of this bike |
| What kind of rider is the right kind of rider when it comes to a TRX250X? Just about anyone 16 or older. That’s because the TRX250X is perfectly suited for new riders, experienced riders, back wood trails and hot desert sands. |
| General information | |
|---|---|
| Model name | Honda TRX250X |
| Model year | 2013 |
| Category | ATV |
| Price as new | US$ 4499. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 229.0 ccm (13.97 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 68.5 x 62.2 mm (2.7 x 2.4 inches) |
| Fuel system | Carburettor. 20mm piston-valve carburetor |
| Fuel control | Overhead Valves (OHV) |
| Ignition | CD with electronic advance |
| Lubrication system | Dry sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Honda SportClutch™ |
| Driveline | Direct rear drive shaft |
| Emission details | Meets current California Air Resources Board (CARB) off-road emissions standards. |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double-wishbone |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | Swingarm with single shock |
| Rear wheel travel | 145 mm (5.7 inches) |
| Front tire | 22/7-10 |
| Rear tire | 22/10-9 |
| Front brakes | Double disc. Hydraulic. |
| Diameter | 174 mm (6.9 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 229 mm (9.0 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 171.9 kg (379.0 pounds) |
| Seat height | 798 mm (31.4 inches) If adjustable, lowest setting. |
| Overall height | 1082 mm (42.6 inches) |
| Overall length | 1740 mm (68.5 inches) |
| Overall width | 1062 mm (41.8 inches) |
| Ground clearance | 150 mm (5.9 inches) |
| Wheelbase | 1125 mm (44.3 inches) |
| Fuel capacity | 9.46 litres (2.50 US gallons) |
| Other specifications | |
| Color options | Red |
| Starter | Electric |
| Factory warranty | One year. Unlimited milage. Transferable. |
| Comments | Model ID: TRX250X |
