General information |
|
Model
|

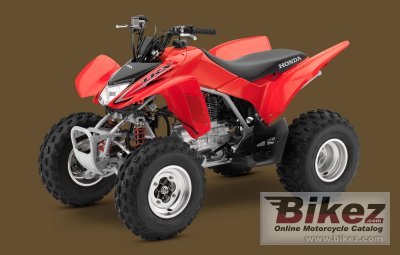

Honda TRX250X |
|
Year model
|
2010 |
|
Type
|
ATV |
| Price as new | US$ 4299. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
229.0 ccm (13.97 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
68.5 x 62.2 mm (2.7 x 2.4 inches) |
|
Fuel system
|
Carburettor. 22mm piston-valve carburetor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
CD with electronic advance |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Clutch
|
Honda SportClutch™ |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double-wishbone |
|
Front wheel travel
|
150 mm (5.9 inches) |
|
Rear suspension
|
Swingarm with single shock |
|
Rear wheel travel
|
145 mm (5.7 inches) |
|
Front tire
|
22/7-10 |
|
Rear tire
|
20/10-9 |
|
Front brakes
|
Double disc |
|
Diameter
|
174 mm (6.9 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
171.9 kg (379.0 pounds) |
|
Seat height
|
798 mm (31.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1077 mm (42.4 inches) |
|
Overall length
|
1740 mm (68.5 inches) |
|
Overall width
|
1062 mm (41.8 inches) |
|
Ground clearance
|
150 mm (5.9 inches) |
|
Wheelbase
|
1125 mm (44.3 inches) |
|
Fuel capacity
|
9.46 litres (2.50 US gallons) |
|
Other specifications |
|
Color options
|
Red, White |
|
Starter
|
Electric |
|
Comments
|
Model ID: TRX250X |
