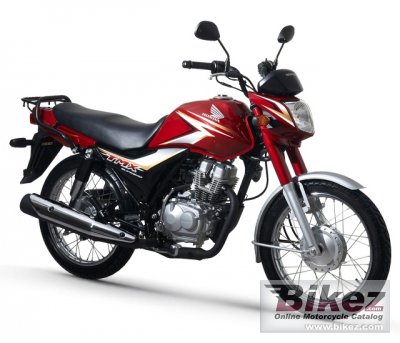

2013 Honda TMX Supremo. Picture credits - Honda. Submit more pictures.

2013 Honda TMX Supremo

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Insurance quotes
Tip a friend
List related bikes

General information
Model:	Honda TMX Supremo
Year:	2013
Category:	Allround
Rating:	69.6 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	149.20 ccm (9.10 cubic inches)
Engine type:	Single cylinder, four-stroke
Power:	10.53 HP (7.7 kW)) @ 7000 RPM
Torque:	11.58 Nm (1.2 kgf-m or 8.5 ft.lbs) @ 5000 RPM
Bore x stroke:	57.3 x 57.8 mm (2.3 x 2.3 inches)
Fuel system:	Carburettor
Fuel control:	Overhead Cams (OHC)
Ignition:	DC-CDI
Cooling system:	Air
Gearbox:	5-speed
Transmission type, final drive:	Chain
Chassis, suspension, brakes and wheels
Front suspension:	Telescopic Fork
Rear suspension:	Twin shocks
Front tyre:	80/100-18
Rear tyre:	90/90-18
Front brakes:	Expanding brake (drum brake)
Rear brakes:	Expanding brake (drum brake)
Wheels:	Spoke
Physical measures and capacities
Dry weight:	120.0 kg (264.6 pounds)
Power/weight ratio:	0.0878 HP/kg
Seat height:	771 mm (30.4 inches) If adjustable, lowest setting.
Overall height:	1,068 mm (42.0 inches)
Overall length:	2,037 mm (80.2 inches)
Overall width:	778 mm (30.6 inches)
Ground clearance:	163 mm (6.4 inches)
Wheelbase:	1,306 mm (51.4 inches)
Fuel capacity:	14.30 litres (3.78 gallons)
Oil capacity:	1.00 litres (0.07 quarts)
Other specifications
Color options:	Black, blue red
Starter:	Electric & kick
Comments:	Sold in some Asian contries.
Further information
Insurance costs	Compare US insurance quotes from the nation's top providers.
Parts finder	Chaparral provides online schematics & OEM parts for the US. Revzilla offers up to 50% off motorcycle accessories. Ships to most countries. CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info.
Ask questions	Join the 13 Honda TMX Supremo discussion group or the general Honda discussion group.
Related bikes	List related bikes for comparison of specs.
