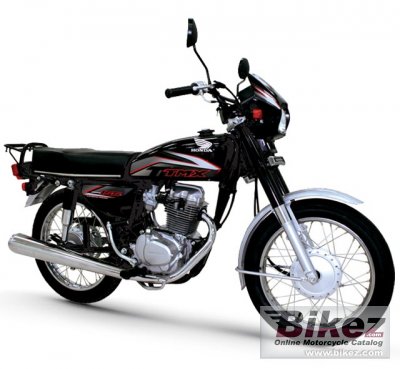

2013 Honda TMX 155

Honda TMX 155 2013


2013 Honda TMX 155 specifications, pictures, reviews and rating

Honda's profilation of this bike
Fuel efficient, earth-friendly, 4-Stroke air cooled OHV 155 single cylinder engine that assures you of a responsive, economical and powerful performance.

General information
Motorcycle name Honda TMX 155
Year of manufacture 2013
Type Allround
Rating 3.7  Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle.
Engine and transmission
Engine size 155.3 ccm (9.48 cubic inches)
Type of engine Single cylinder, four-stroke
Output 12.5 HP (9.1 kW)) @ 8000 RPM
Torque 12.1 Nm (1.2 kgf-m or 8.9 ft.lbs) @ 6500 RPM
Compression 9.0:1
Bore x stroke 58.5 x 57.8 mm (2.3 x 2.3 inches)
Fuel system Carburettor
Fuel control Overhead Valves (OHV)
Ignition AC-CDI (Capacitor Discharge Ignition)
Cooling system Air
Gearbox 4-speed
Transmission type Chain (final drive)
Chassis, suspension, brakes and wheels
Front suspension Telescopic Fork
Rear suspension Twin shocks
Front tire 3.00-17
Rear tire 3.00-17
Front brakes Expanding brake (drum brake)
Rear brakes Expanding brake (drum brake)
Wheels Spoke
Physical measures and capacities
Dry weight 108.3 kg (238.8 pounds)
Power/weight ratio 0.1151 HP/kg
Seat height 743 mm (29.3 inches) If adjustable, lowest setting.
Overall height 1032 mm (40.6 inches)
Overall length 1915 mm (75.4 inches)
Overall width 735 mm (28.9 inches)
Ground clearance 150 mm (5.9 inches)
Wheelbase 1201 mm (47.3 inches)
Fuel capacity 9.00 litres (2.38 US gallons)
Oil capacity 1.00 litres (1.06 US quarts)
Other specifications
Color options Black, blue red
Starter Kick
Comments Sold in some Asian contries.
