General moped information |
Model name
|

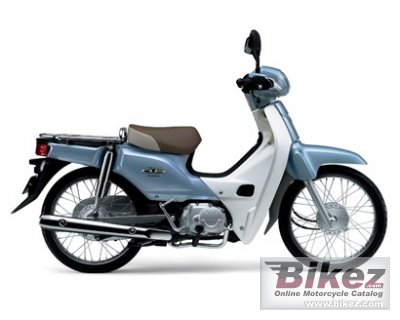

Honda Super Cub 50 |
Year model
|
2013 |
Type
|
Scooter |
Rating
|
3.5 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
49.0 ccm (2.99 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Effect
|
5.0 HP (3.6 kW)) @ 7500 RPM |
Torque
|
3.8 Nm (0.4 kgf-m or 2.8 ft.lbs) @ 5500 RPM |
Compression
|
10.0:1 |
Bore x stroke
|
37.8 x 44.0 mm (1.5 x 1.7 inches) |
Fuel system
|
Injection. PGM-FI |
Fuel control
|
Overhead Cams (OHC) |
Cooling system
|
Air |
Transmission type
|
Belt (final drive) |
Fuel consumption
|
2.28 litres/100 km (43.9 km/l or 103.17 mpg) |
Greenhouse gases
|
52.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
Chassis, suspension, brakes and wheels |
Frame type
|
Backbone |
Rake (fork angle)
|
26.0° |
Trail
|
71 mm (2.8 inches) |
Front suspension
|
Telescopic fork |
Rear suspension
|
Swing arm |
Front tire
|
60/100-17 |
Rear tire
|
60/100-17 |
Front brakes
|
Expanding brake (drum brake) |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Dry weight
|
95.0 kg (209.4 pounds) |
Power/weight ratio
|
0.0522 HP/kg |
Seat height
|
735 mm (28.9 inches) If adjustable, lowest setting. |
Overall height
|
1050 mm (41.3 inches) |
Overall length
|
1915 mm (75.4 inches) |
Overall width
|
700 mm (27.6 inches) |
Ground clearance
|
135 mm (5.3 inches) |
Wheelbase
|
1215 mm (47.8 inches) |
Fuel capacity
|
4.30 litres (1.14 US gallons) |
Other specifications |
Color options
|
Green/white, blue/white |
Starter
|
Electric & kick |
Comments
|
Sold in Japan. |
